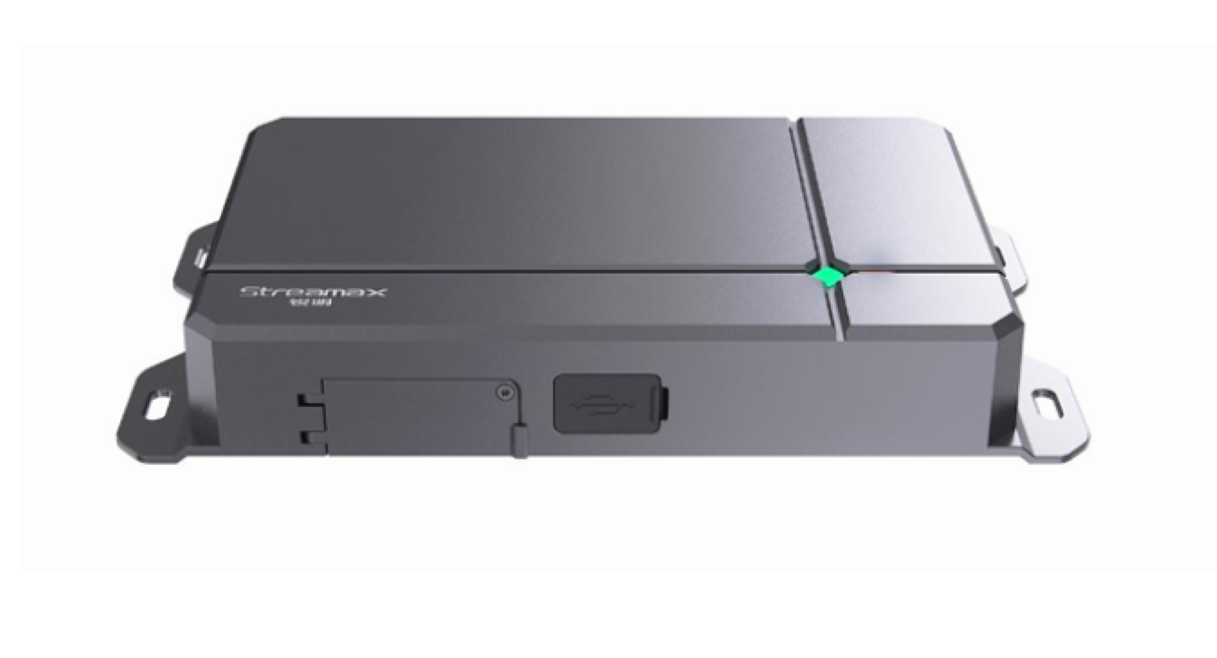

Product Features :
- 4-channel wide-angle lenses, capable of supporting up to 1080P HD recording
- Supports connection to MDVR via a 6-pin Ethernet port, enabling the transmission of up to 5 video streams to MDVR for forming valid video evidence.
- Compatible with H.264/H.265 encoding
- Supports TF card storage with a maximum capacity of 512GB, dual card slots, and concurrent storage of main and sub-streams.
- Equipped with a built-in Wi-Fi module, supporting both screen and mobile app operations.
- Offers 4 IO inputs, 2 IO outputs, 1 CAN, 3 RS232, and 1 RS485 interfaces.
- Supports pulse speed source, GPS speed source, and CAN speed source.
- Can operate independently as a standalone unit or as a slave unit paired with an MDVR host.
- Features multiple auxiliary view switching functions, including electronic rearviewmirrors, and supports vehicle signal linkage for angle switching.
- Supports 2D/3D AVM panoramic stitching.
- Offers one-click automatic stitching with a stitching time of ≤15 seconds.
- Supports rapid calibration for swift engineering while maintaining precision.
- Features transparent vehicle body and transparent underbody functions.
- Supports BSD four-direction pedestrian detection and warning function, with adjustable alarm range.
- Supports BSD rear vehicle detection and warning function.
- Supports LDW lane departure warning function.
AI Features :
AI-AVM employs cutting-edge video analysis technology and machine vision to automatically detect road hazards, promptly alerting drivers at the terminal to heighten their awareness and thus prevent accidents. Furthermore, when integrated with MDVR, the system is capable of uploading the triggered events to the cloud for real time monitoring and review.
BSD Features Diagram :
