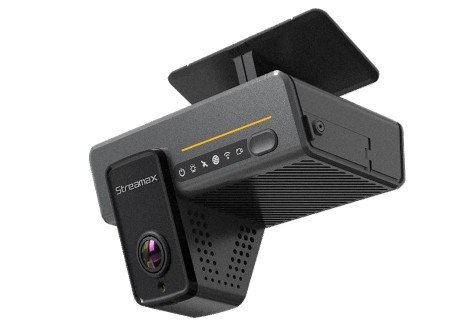

AD Plus2.0

Functions and Features :

• Ultra-wide 140° DFOV road facing lens, supporting up to 1920P UHD video recording
• Ultra-wide 170° DFOV driver facing lens, supporting up to 1080P HD video recording
• Support up to 4-channel video recording
• H.264/H.265 encoding
• 2ｘ256GB dual-Micro SD card storage, supporting the simultaneous storage of main
  streams and sub streams
• Built-in Wi-Fi, 4G communication module, and inertial navigation positioning module
• AES256 encryption for video/audio data, encryption protocol TLS1.3 for data transmission
• 4-channel IO input, 1-channel CAN and 1-channel RS232
• Compact design, not affecting the driver's sight regardless of vehicle size
• OBD power supply, easy installation
• Built-in ADAS function, supporting lane departure warning (LDW), forward collision warning (FCW), and headway monitoring warning (HMW)
• Built-in DSC function, supporting the detection of unsafe driving behaviors
• Support echo & noise canceling algorithm to improve the quality of two-way audio
  communication
• Sleep mode, remote wakeup
• Built-in 6-axis gravity sensor, supporting rapid acceleration, rapid deceleration, harsh cornering, and accident detection


AI Function :

      AD Plus2.0 uses machine vision based on video analysis technology to automatically identify road risks and drivers' unsafe driving behaviors. Any detected event will trigger audible and visual reminders to remind drivers in real time, and the event videos can also be uploaded to the cloud.

Warning: AI function must be calibrated and configured in strict accordance with the
installation and operation instructions, otherwise, the AI function cannot work properly.

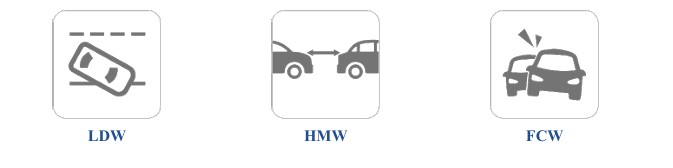

ADAS functions :

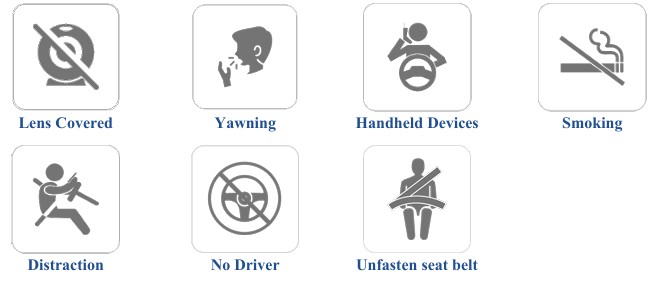

DSC functions :

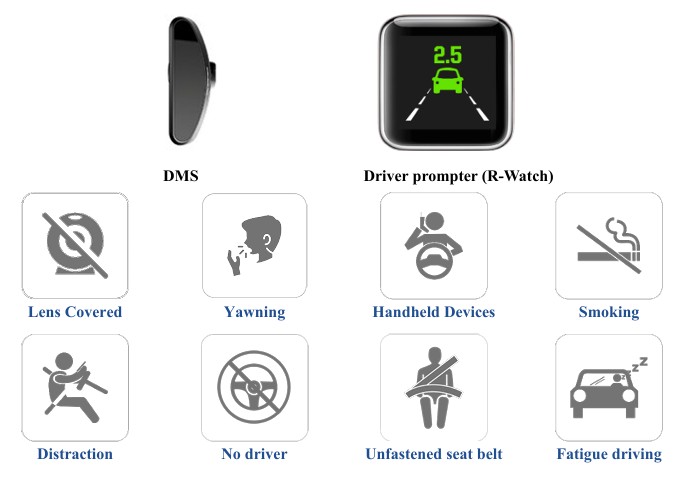

DMS functions (optional) :

Dimensional Drawings (Unit: mm) :
