Product Introduction :

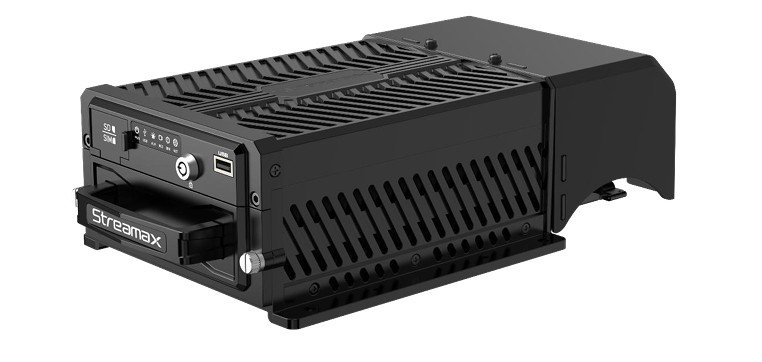

X3NPro-PTH0404 is a cost-effective device specially developed for mobile video surveillance
and remote video monitoring, featuring high functional scalability. It is equipped with a high-speed
processor and an embedded operating system, integrating state-of-the-art H.265 video
compression/decompression technologies, 3G/4G/Wi-Fi network transmission technologies, and
GPSpositioning technologies in the IT industry. It adopts the latest processor solution and supports
recordings in formats of 1080p, 720p, WD1, WHD1, WCIF, D1, HD1, and CIF. Moreover, it
allows real-time local recording and wireless uploading of vehicle status data and monitoring data.
It can also be used in conjunction with the center software to implement professional functions
such as alarm linkage, evidence center, remote management, video playback, track analysis, etc.,
embodying features of high reliability, installation flexibility, and maintenance convenience.
Product Features :
- EmbeddedLinux operating system
- Networking: 4G/5G network, GPS/ GLONASS, WIFI/BT.
- Support1080P/720Presolution recording.
- H.265/H.264 encoding and decoding to improve the memory space utilization
- 3.5-inch hard disk storage, hard disk heating & hard disk power-off protection technologies
- Optional SSD: 2 sets of 2.5 inch solid state drives.
- Supports IO wake-up.
- Supports 4 channels ofAHD and 4 channels of IPC.
- SDcardbackup
- Outstanding anti-vibration performance and high reliability, providing comprehensive functions
- Connection with storage units such as a fireproof box for disaster recovery backup

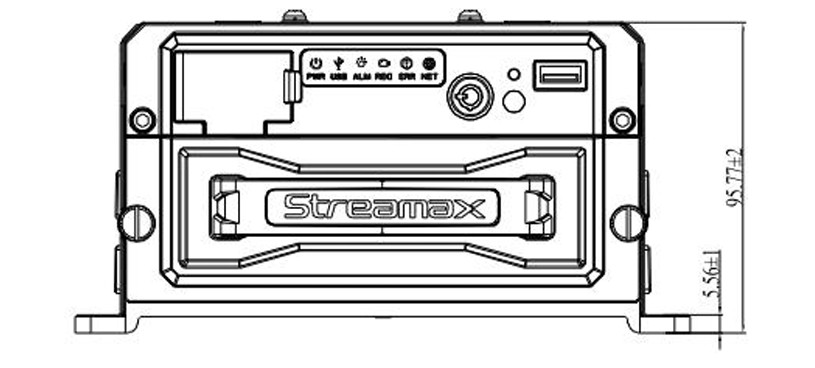

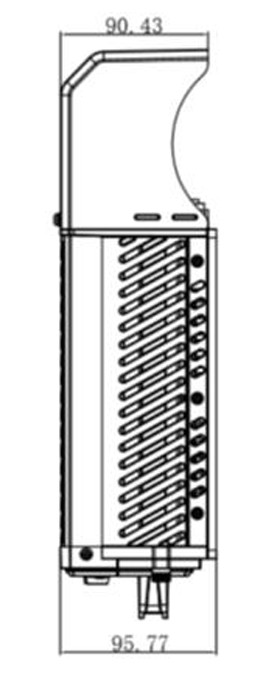

Dimension (Unit: mm) :
